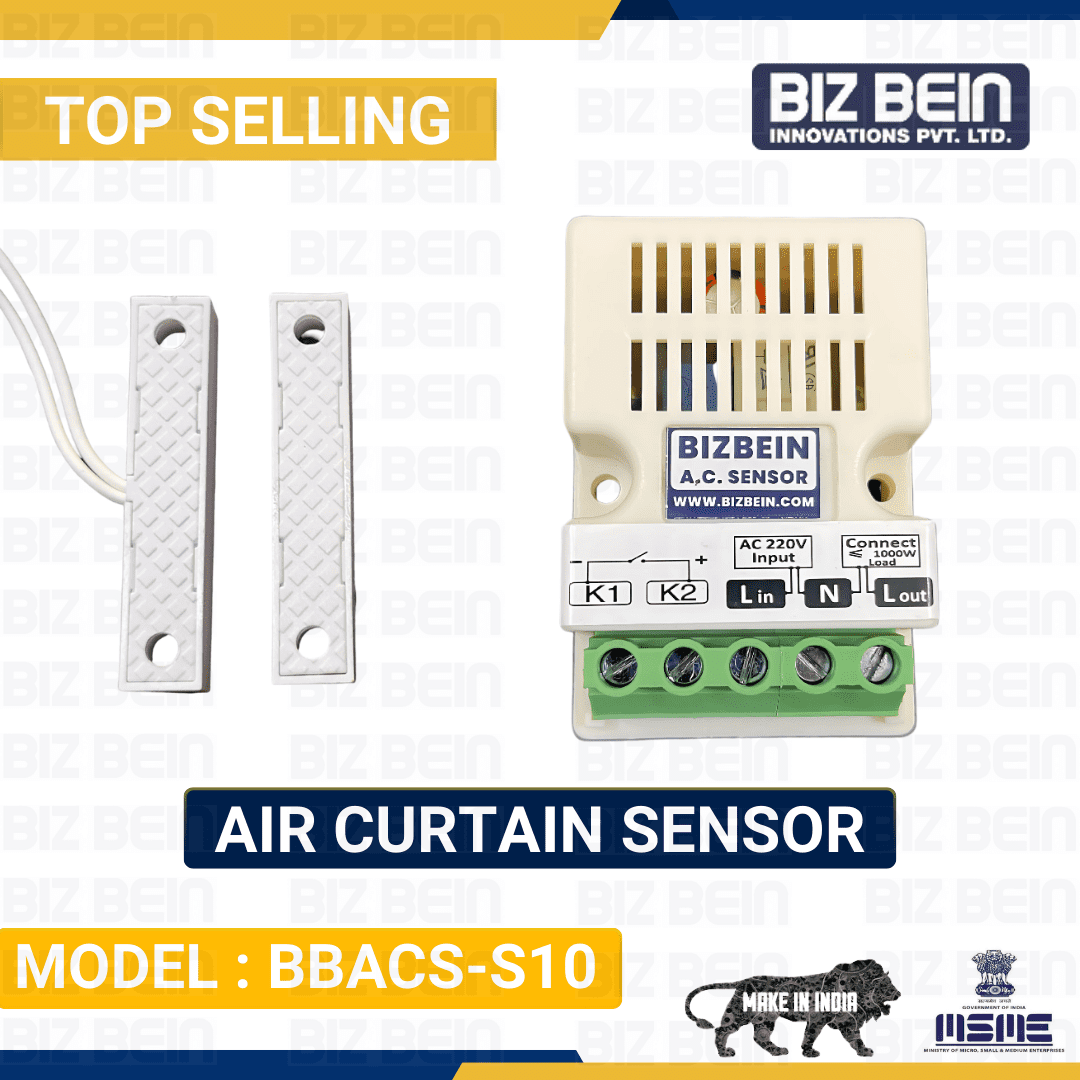

BizBein Air Curtain Sensor | Automatic Door Sensor Switch – Model : BBACS-S10

Original price was: ₹1,950.00.Current price is: ₹1,499.00.

& Free Shipping

Door Sensor Switch Unit BBACS-S10
Magnetic Switch
Connection Terminals of Air Curtain Sensor

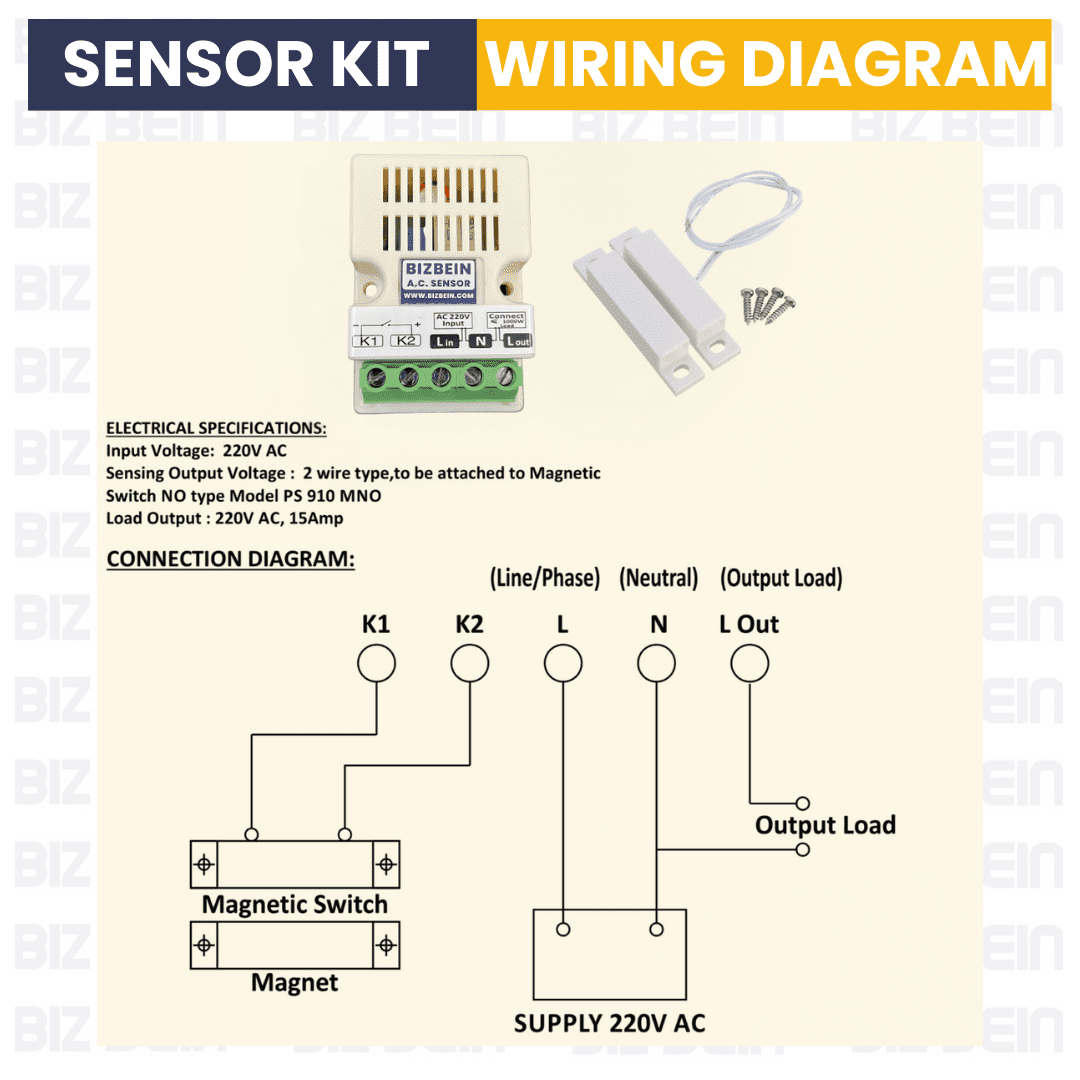

Wiring Guide / Diagram
Installation Manual (PDF upon request)

Availability: 220 in stock

Guaranteed Safe Checkout

Product Description

The BizBein Air Curtain Sensor – BBACS-S10 is a magnetic door sensor switch that autonomously activates your air curtain when a door is opened. This model is engineered to optimize hygiene, energy efficiency, and automation in industrial, commercial, and cleanroom spaces without the need for manual operation.

This compact sensor device is constructed with high-quality internal components to ensure reliable activation under high-traffic conditions and a long operational life.

How It Works:

This sensor switch is situated in close proximity to the door. The air curtain is immediately activated by the sensor upon the motion or opening of the door, thereby preventing the entry of hot air, insects, or grime. The air curtain is autonomously deactivated after a brief period of inactivity, thereby guaranteeing energy efficiency and intelligent operation.

Key Features Of BizBein Air Curtain Sensor – BBACS-S10 :

Compatible with all standard air curtain variants
Automatic operation based on infrared or magnetic sensors
Bizbein door sensor switch Guarantees touchless, hygienic entry and exit
Suitable for use in hospitals, restaurants, cleanrooms, retail stores, and factories
Air Curtain Sensor mechanism that is both durable and long-lasting
Simple to install and wire with an air curtain control panel.

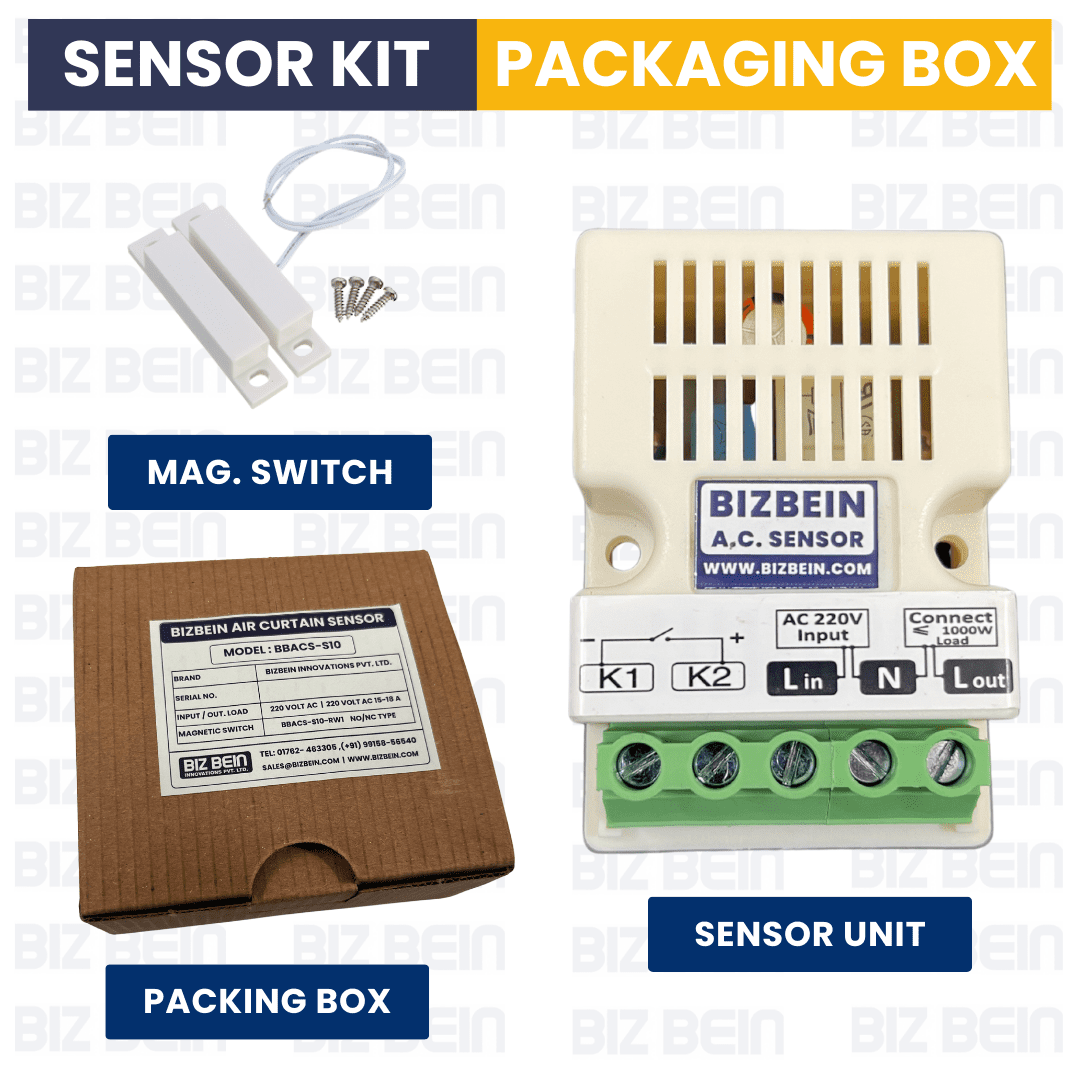

What’s Included:

Door Sensor Switch Unit BBACS-S10
Magnetic Switch
Connection Terminals of Air Curtain Sensor
Wiring Guide / Diagram
Installation Manual (PDF upon request)

What is the Advantage of Selecting BizBein Air Curtain Sensor BBACS-S10?

Guaranteed compatibility with all conventional air curtain models
Effortless to integrate – simply connect and play
Exceptional dependability for environments that operate continuously
Longevity with over one million activations subjected to testing
Technical support and after-sales services that are exceptional

Applications of BizBein Air Curtain Sensor BBACS-S10 :

Entries into pharmaceutical cleanrooms
Supermarkets and retail establishments
Doorways of warehouses and factories
Doors of hospitals, hotels, and restaurants

Universal Compatibility for all brands and sizes of air curtains, including:

✅Air Curtain 3 Feet

✅ Air Curtain 4 Feet

✅ Air Curtain 5 Feet

✅ Air Curtain 6 Feet

It operates seamlessly in conjunction with air curtains that are employed in:

Industrial Manufacturing Locations | Malls and commercial showrooms | Hospitals and laboratories | Offices and Hotels | Cleanrooms and Entries to Homes

Air Curtain Door Sensor

A smart automation accessory, an air curtain entrance sensor is intended to optimize the operation of air curtains. It utilizes magnetic or infrared triggers to detect door activity and autonomously activates or deactivates the air curtain, thereby guaranteeing optimal energy consumption and hygiene. These Air Curtain Door Sensor are extensively employed in industrial facilities, hospitals, commercial kitchens, and retail outlets to facilitate touchless operation.

Air Curtain Door Sensor Price

when asking air curtain door sensor price in India. it is contingent upon the form of sensor (magnetic or infrared), voltage compatibility, and switching capacity. At BizBein Innovations, we provide competitive pricing for high-performance sensors such as the BBACS-S10, with prices commencing at ₹1,499. Our sensors provide exceptional value by virtue of their durability, ease of installation, and high compatibility with all air curtain sizes.

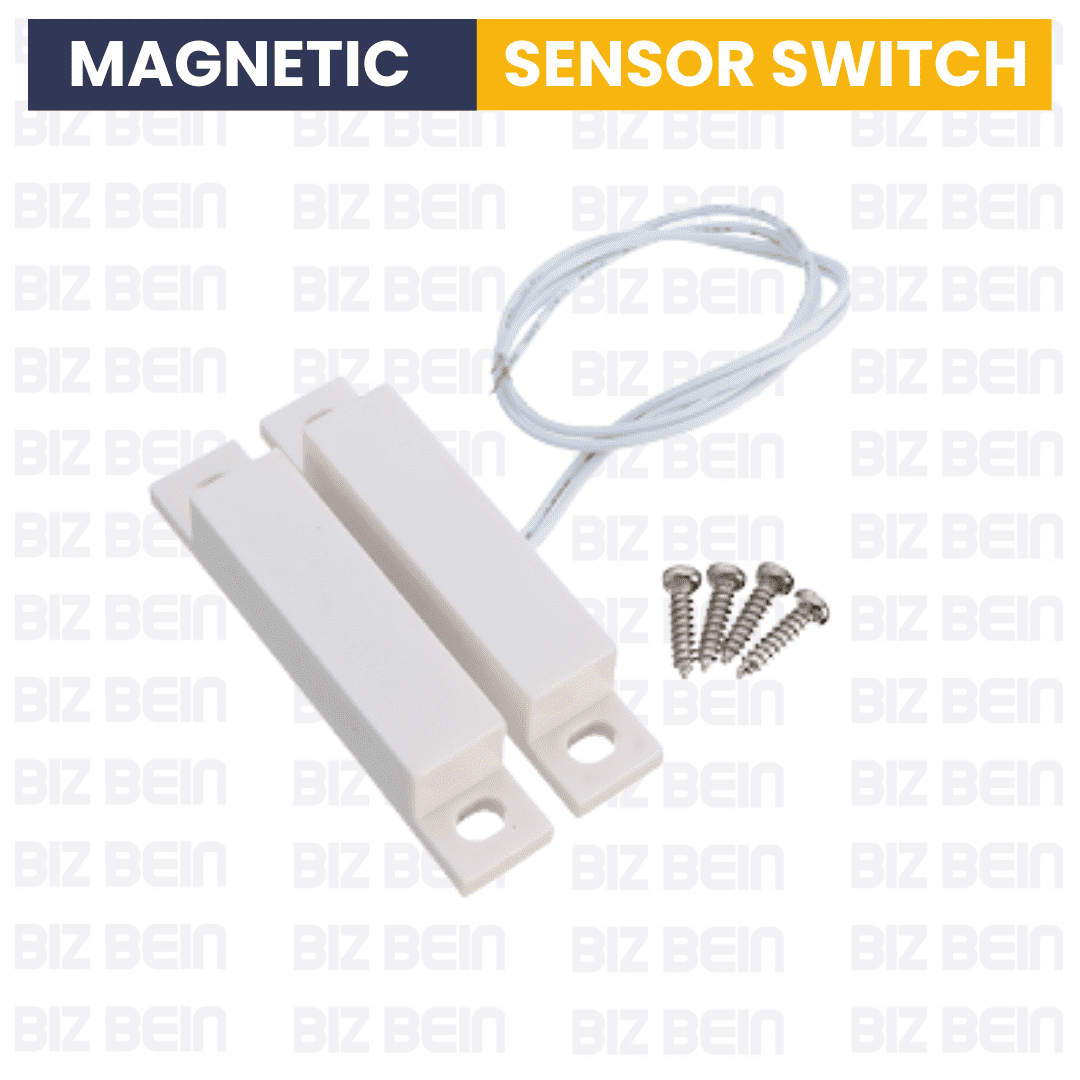

Air Curtain Magnetic Sensor

A magnetic reed switch mechanism is employed by magnetic sensors for air curtains to detect door openings. The air curtain is activated by the Air Curtain Magnetic Sensor when the magnetic field is disrupted by the door opening. This guarantees that the curtain operates solely when necessary, thereby reducing power consumption and improving the sanitation of entrances in commercial and industrial buildings.

Air Curtain Sensor Distributor Delhi,Chandigarh,Punjab,Haryana,India

Are you in search of a reliable distributor of air curtain sensors in Delhi ? Chandigarh,Punjab,Haryana,India BizBein Innovations is proud to provide rapid delivery throughout India, including bulk orders to Delhi NCR. We provide top-tier commercial clients, HVAC integrators, and facility management companies throughout the capital region with premium-quality sensors such as the BBACS-S10. Our sensors are currently available and prepared for shipment.

Air Curtain Sensor Images and Price

You have arrived at the appropriate location if you are in quest of air curtain sensor images and pricing. At BizBein.com, we offer transparent pricing, specifications, wiring diagrams, and detailed product images. We have included technical datasheets and actual product images in our BBACS-S10 model to assist you in making an informed decision. Please reach out to us for inquiries regarding Air Curtain Sensor Images and Price OEM or wholesale pricing.

Technical Specifications

Technical Specifications Of BizBein Air Curtain Sensor BBACS-S10

Parameter	Details
Brand	BizBein Innovations
Model	BBACS-S10
Input Voltage	220V AC
Load Output	220V AC, 20 Amp
Switch Type	NO/NC Magnetic Switch Compatible
Sensing Output Voltage	3-wire Type
Switching Voltage	200 VDC
Switching Current	0.5 Amp
Contact Rating	10W/VA
Contact Resistance (Min.)	200 milliohms
Insulation Resistance	10⁶ ohms
Life Expectancy	1 Million Operations

Technical Drawing

FAQ

Frequently Asked Questions (FAQs)

1. Is the air curtain door sensor BBACS-S10 compatible with all air curtain models?

✅ It is true that the BBACS-S10 sensor is compatible with all standard air curtain models, including those that are 3 feet, 4 feet, 5 feet, and 6 feet in length. It is compatible with both single-phase and three-phase air curtain systems that are employed in industrial, commercial, and residential environments.

2. How does the air curtain interact with the magnetic door sensor?

The door frame is where the magnetic trigger is situated. The air curtain is activated by the BBACS-S10 sensor when the magnetic contact breaks when the door is opened. The air curtain is automatically deactivated upon the door being closed, which guarantees both energy efficiency and hygiene.

3. What is the range of input and output voltages that this door sensor switch
can accommodate?

The BBACS-S10 sensor is designed for direct linkage with industrial-grade air curtains, as it operates on a 220V AC input and supports a load output of 220V AC, 20 Amp.

4. Is it feasible for an electrician to implement it without difficulty?

Indeed, the BBACS-S10 is intended for effortless and rapid installation. It includes a wiring diagram and terminals that are plainly labeled. It can be installed within 15–30 minutes by any standard electrician.

5. What is the anticipated lifespan of the sensor and switch and air curtain door sensor price ?

The BBACS-S10 sensor and magnetic switch are designed for long-term durability, with a life expectancy of 1 million operations. It is also resistant to vibrations (20G) and shocks (30G), which guarantees its long-term dependability in high-traffic environments. Bizbein offer best air curtain door sensor price in india.
